Product name: Melamine Cyanurate (MCA)
Synonyms: Melamine‑cyanuric acid complex, MCA flame retardant
CAS‑No: 37640-57-6
EC‑No: 253‑575‑7
Molecular Formula: C6H9N9O3
Molecular Weight: 255.19 g/mol
HS‑Code: 2933699099Note: Nitrogen‑based halogen‑free flame retardant, complex of melamine and cyanuric acid (1:1 molar ratio). Main grades: General Grade, Super‑fine Grade (D50 1‑3μm), Ultra‑fine Grade (D50＜1μm) for nylon PA6 / PA66 to reach UL94 V‑0 (1.6 mm).
1. Physical‑Chemical Properties (All grades)
Density 1.70 g/cm³ @20 ℃
Bulk Density 0.45‑0.65 g/cm³Solubility in water Practically insoluble (~0.01 g/L @25 ℃)
Solubility in organics Insoluble in most organic solvents
Stability Thermally stable below 300 ℃; decomposes endothermically above 320 ℃, releases non‑flammable nitrogen‑containing gas; non‑hygroscopic under normal condition
2. Multi‑Grade Specifications
| Test Item | General Industrial Grade | Super‑Fine Grade | Ultra‑Fine Grade | Test Condition |
|---|---|---|---|---|
| Appearance | White fine crystalline powder | White super‑fine powder | White ultra‑fine powder | Visual @25 ℃ |
| MCA Assay | ≥99.0 % | ≥99.5 % | ≥99.5 % | Titration |
| Free Melamine (max) | ≤0.30 % | ≤0.20 % | ≤0.15 % | HPLC |
| Free Cyanuric Acid (max) | ≤0.30 % | ≤0.20 % | ≤0.15 % | HPLC |
| Moisture (KF, max) | ≤0.30 % | ≤0.20 % | ≤0.20 % | Karl‑Fischer |
| pH (10 % suspension) | 5.0‑7.0 | 5.5‑6.5 | 5.5‑6.5 | 25 ℃ |
| Nitrogen Content | ≥47.5 % | ≥48.0 % | ≥48.0 % | Elemental analysis |
| D50 Particle Size | 5‑10 μm | 1‑3 μm | ＜1.0 μm | Laser particle size analyzer |
| Decomposition Temperature | ≥320 ℃ | ≥325 ℃ | ≥330 ℃ | TGA, 5 ℃/min |
3. Grade Typical Applications
General Industrial Grade: Halogen‑free flame retardant for unreinforced PA6, PA66, flame‑retardant masterbatch, coatings, rubber; cost‑effective bulk export grade.
Super‑Fine Grade: For nylon electrical components, good dispersion, low sedimentation, UL94 V‑0 at 1.6 mm thickness.
Ultra‑Fine Grade (D50＜1 μm): High‑end nylon thin‑wall parts, high transparency requirement, low mechanical property loss; equivalent to imported Melapur‑MCA.
Application note: MCA performs best for unfilled / non‑reinforced polyamide. Glass‑filled PA needs synergist compound formulation.4. Storage & Shelf‑Life
Storage: Keep in dry, cool and well‑ventilated warehouse. Avoid heavy moisture and direct sunlight. Keep bags tightly closed after partial use.
Shelf‑life: 24 months under un‑opened original package.

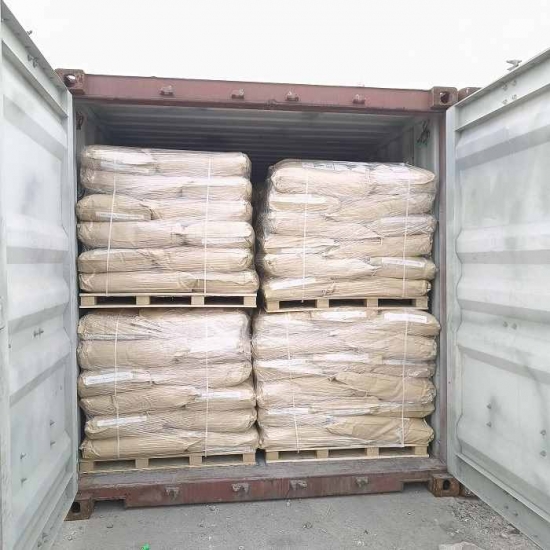

Standard export packing: 25 kg PE lined woven bag, palletized.
5. Handling & Safety Notes
Non‑flammable solid; low toxicity. Avoid dust inhalation. Wear dust mask and safety goggles during operation.
In case eye/skin contact, rinse thoroughly with plenty running water.
Not classified as dangerous goods for transport.
For complete GHS statements please refer to full SDS document.
Disclaimer: All above data are typical laboratory reference values only, not binding contractual specifications. End‑users must verify suitability for own process conditions.
